HTTP API source

HTTP sources let you connect REST APIs so your AI agents can fetch data from external services — CRMs, payment platforms, internal APIs, and more.

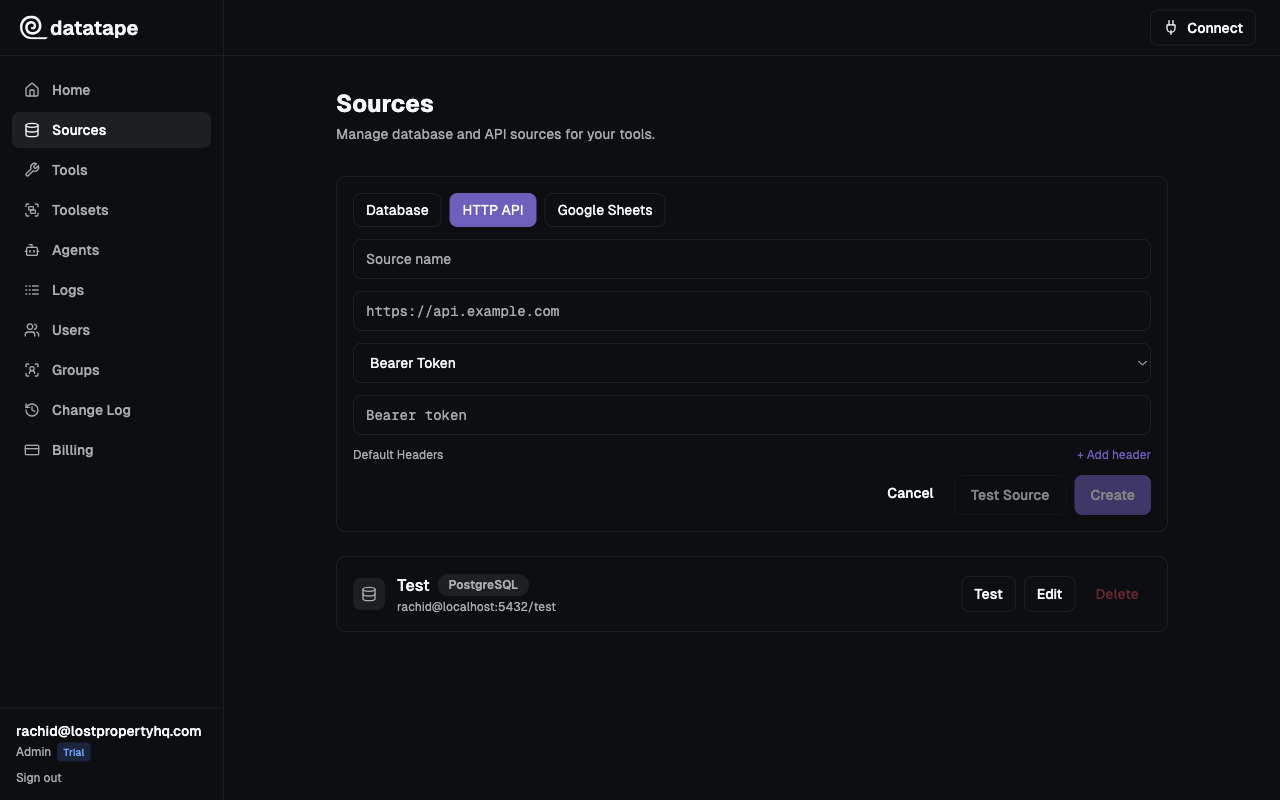

Connection fields

Field	Required	Default	Description
Base URL	Yes	—	The root URL for API requests (e.g., `https://api.example.com/v1`)
Auth Method	Yes	None	Authentication method (see below)
Default Headers	No	—	Headers sent with every request (e.g., `Accept: application/json`)
Timeout	No	`30s`	Request timeout in seconds

Base URL:     https://api.example.com/v1
Auth Method:  Bearer Token
Timeout:      30s

Authentication methods

None

No authentication. Use for public APIs or APIs behind a VPN.

API Key

Send an API key in a request header.

Field	Description
Header Name	The header that carries the key (e.g., `X-API-Key`, `Authorization`)
API Key	The key value

Header Name:  X-API-Key
API Key:      sk_live_abc123...

Bearer Token

Send a static bearer token in the Authorization header.

Field	Description
Token	The bearer token value

Datatape sends: Authorization: Bearer <token>

OAuth2 Client Credentials

Datatape obtains an access token automatically using the client credentials grant and refreshes it when it expires.

Field	Description
Client ID	OAuth2 client identifier
Client Secret	OAuth2 client secret
Token URL	The authorization server's token endpoint
Scope	Space-separated list of scopes (optional)

Client ID:      datatape-client
Client Secret:  ••••••••
Token URL:      https://auth.example.com/oauth/token
Scope:          read:data

Datatape caches the access token and refreshes it before expiry. You do not need to handle token rotation manually.

Default headers

Add headers that should be sent with every request. Common uses:

Accept: application/json
X-Api-Version: 2024-01-01

These headers are merged with any per-tool headers. Per-tool headers take precedence if there is a conflict.

Timeout configuration

Set the timeout to match your API's expected response time:

Timeout	Use case
`5s`	Fast internal APIs
`30s`	Default. Suitable for most external APIs.
`60s`	Slow APIs, report generation endpoints

AI clients typically have their own timeout for MCP tool calls (often 30-60 seconds). If your HTTP source timeout is longer than the client timeout, the call may be cancelled before the API responds.

Writing tools for HTTP sources

HTTP source tools use a different template syntax than SQL sources. You define the request path, method, and body:

GET /customers/{{ customer_id }}

POST /reports
Content-Type: application/json

{
  "start_date": "{{ start_date }}",
  "end_date": "{{ end_date }}"
}

Common connection issues

Symptom	Likely cause	Fix
`Connection refused`	API not reachable from Datatape	Check that the API is publicly accessible or allowlist Datatape IPs
`401 Unauthorized`	Invalid or expired credentials	Verify API key, token, or OAuth2 client credentials
`403 Forbidden`	Insufficient permissions	Check API permissions or scopes
`Timeout`	API too slow or unreachable	Increase the timeout value or check API health
`SSL certificate error`	Self-signed or expired certificate	Use a valid TLS certificate

Testing the connection

Click Test connection before saving. Datatape sends a GET request to the base URL and verifies a successful response.

Source row showing a green 'Connected' badge after a successful test

Security notes

All credentials (API keys, tokens, client secrets) are encrypted at rest with Fernet
Credentials are never returned in API responses or exposed to AI agents
All HTTP source requests use HTTPS. Plain HTTP URLs are rejected.
